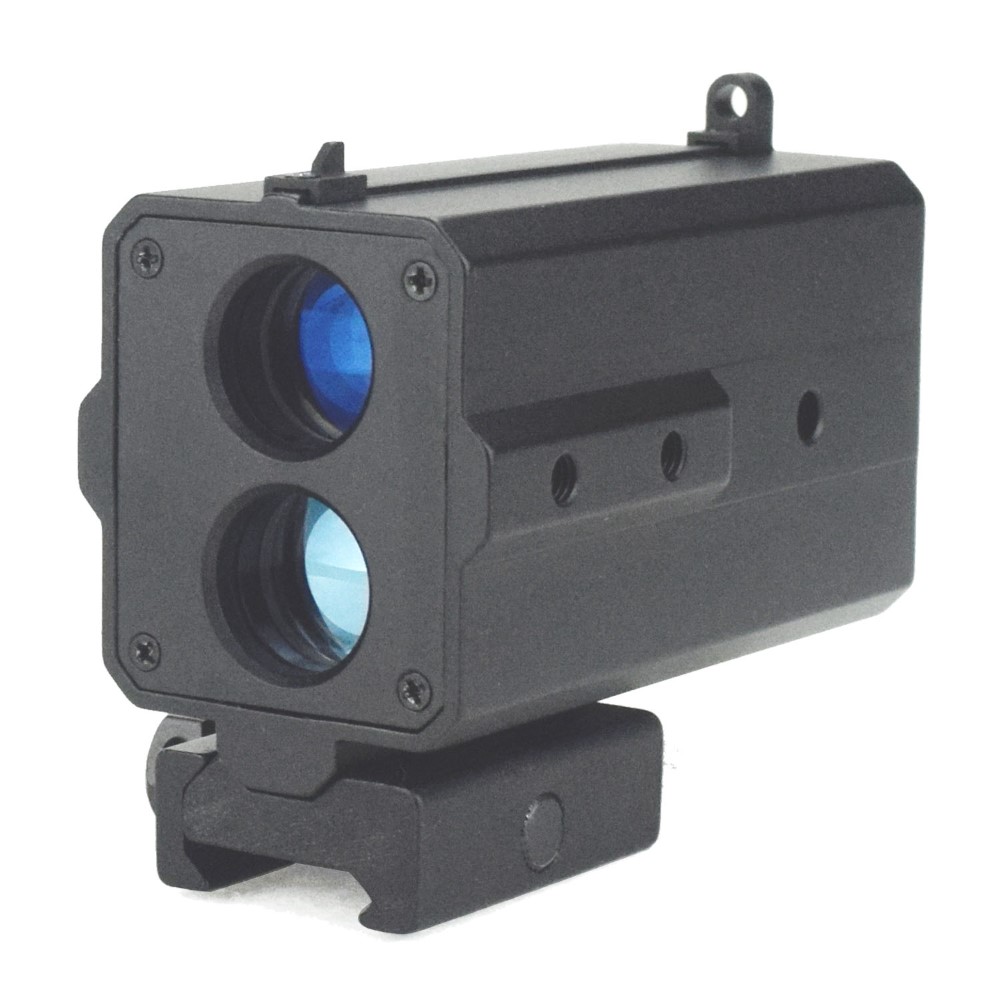

All-Weather Mini Laser Rangefinder
This mini laser rangefinder is designed with all-aluminum shell and blue OLED screen, which can be used under all weather conditions; it has voice reading function by use of measurement button and earphone answer button; with three-fixture design, so it can quickly be equipped with firearms, bow and crossbow; the mechanical aiming point makes ranging possible everywhere and anytime.
- Max range: 600m\800m\1000m
- Ranging resolution: 0.1m
- Voice reading language: Chinese\English
- Volume adjustment: Yes
- Clamping angle: 3 sides
- Sighting method: Mechanical sight
- Display way: Self-luminous display(available at night)
- Battery: CR2 3V
- Unit: Meter, Yard, Degree
- Mode: Distance and Angle Mode\ Scan Mode\ Foggy Day Mode\ Slide Distance, Horizontal Distance, Vertical Distance and Angle Mode\ Speed Mode
- Press power button: power on the device when press power button; press power button again or earphone answer button to start measurement
- Press mode button: switch 4 modes
- Hold power button: power off
- Hold mode button: volume adjustment
- Press power button and mode button together: switch measurement units
Distance and Angle Mode:
Using mode button to select Distance and Angle Mode, aim at the target by mechanical crosshairs, press measurement button or earphone answer button to start measurement. In this mode, voice reading function is activated.
In this mode, it measures distance and angle continuously.
Foggy Day Mode:
This mode eliminates the bad impact of fog on ranging.
Slide Distance, Horizontal Distance, Vertical Distance and Angle Mode
In this mode, it measures slide distance(SD), horizontal distance(HD) and vertical distance(VD).
In this Mode, it measures speed.
