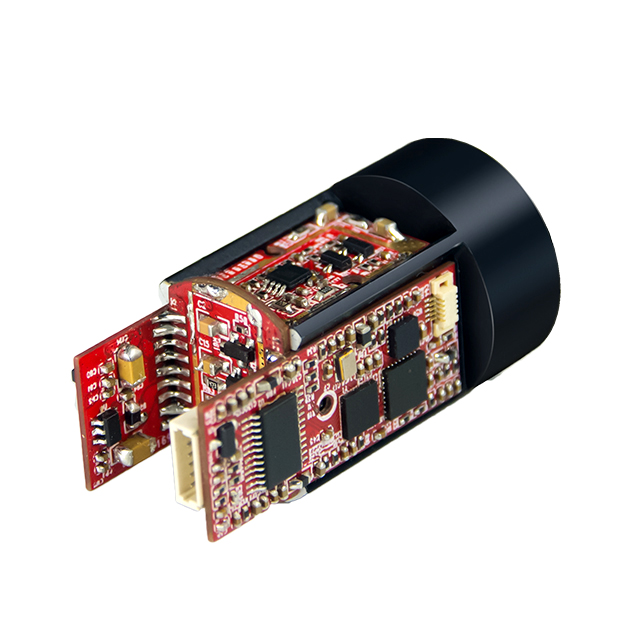

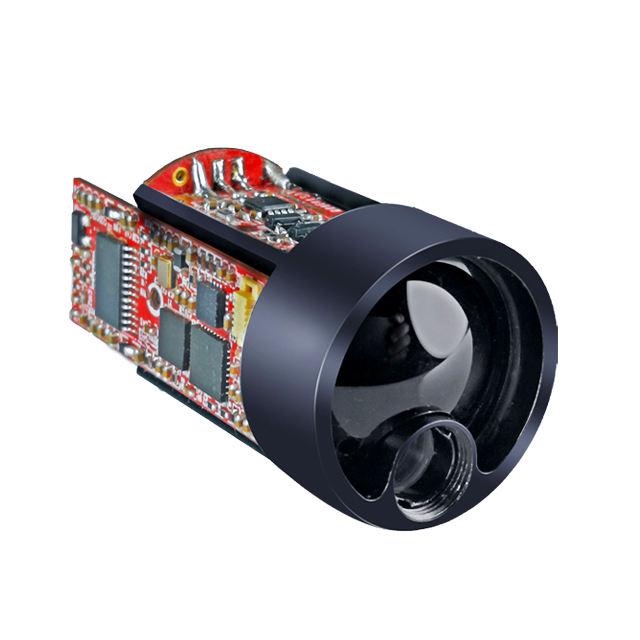

Rangefinder Module UE004B-2000

Description

About Mode:

• The ranging module can provide distance measurement for the main control system quickly and accurately.
• This module uses 905nm semiconductor laser,ranging resolution is 0.1 m,the longest range is 2 km.
• With TTL interface, it can communicate directly with MCU or RS232 serial port through converter(data conversion line is needed).
• At the same time, the host computer test software and instruction set communication protocol are provided to facilitate the secondary development of customers and build their own ranging system.
• It is a range sensor with high integration, low power consumption and light weight.

Button directions:

• Function: H/AH/V series functional technical indicators
• Transmitting Aperture: 6mm
• Receiving Aperture: 17mm(75%)
• Measuring Aange: 5m~600/800/1000/1200/1500/2000m
• Ranging Accuracy: ±1m
• Ranging Frequency: 20Hz~30Hz
• Angle Range: ±60°
• Inclination Accuracy: ±0.5°
• Laser Divergence Angle: 3mrad
• Display Type Supported: OLED/LCD
• Laser Type: 905nm
• power Supply: 3~5V
• Communication Serial port: TTL(Customizable)
• Module Weight: 20g±1
• Waterproof Grade: IP67
• Impact Rating: 800G/ms(10 times per second)
• Outline Size: 23×47mm
• Working Temperature: -20℃ ~50℃
• Baud Rate: 9600/115200bps

Function Description

• H indicates that the module is a common ranging module, which has the functions of single measurement and continuous measurement.
• AH indicates that this module is a common ranging module, which has the functions of single measurement, angle measurement and continuous measurement.
• V denotes that this module is a common ranging module, which has the functions of single measurement, angle measurement and continuous measurement.
• D indicates that the module is a high-speed and high-precision ranging module, which has the functions of angle measurement and continuous measurement.
